Uses:

• For support, protection and conduction of cables.
• Insulating material.
• Length: 3m
• Color: RAL 7035 Grey

Designed to support full load.

Installation

• Safe, easy and quick wall, roof or floor mounting. No burrs when cutting.

Safety

• Electrical (insulating, non-conductive)
• Mechanical (protection against 20J impacts - IK10 acc.)
• Service temperature (+60°C / -20°C)
• Outdoors (Good performance with exposure to the UVs and to the elements. – Certified UL listed)
• Resistance to flame propagation (glow wire test severity degree 960ºC)
• Inherently resistant to corrosion
• Maximum protection for people and cables.

Meets NOM-001SEDE 2012, EN 61537:2007 / IEC 61537:2006 standards for cable trays

Use and features:

• For covering trays
• Insulating material
• Color: RAL 7035 Grey
• Put on by pressure, without screws
• IK10 protection
• High quality extruded aluminum with thick walls

**Available for trays of all lengths

Use and features:

• To connect cable tray segments
• Color: RAL 7035 Grey
• Insulating material
• Rugged design
• Permits expansion
• In areas with temperature variations, (i.e., outdoor applications), use of junctions is recommended to avoid possible warping.
• Junctions have equal or greater thickness than the tray segments

**Available for 60 mm and 100 mm trays (with or without bolts)

Use and features:

• To separate circuits.
• Use 2 screws per meter (66809)
• Color: RAL 7035 Grey
• Insulating material
• Safe, easy, fast mounting

**Available for 60 mm and 100 mm tray lengths (simple and reinforced)

Use and features:

• To change direction by 90º in cable tray installations.
• Hides the cut marks of both cable tray and cover, adding quality finish to the installation
• It is recommended to place supports under the flat corner
• Color: RAL 7035 Grey
• Insulating material
• Safety: electrical, mechanical and against fire
• No loss of cross-section with regard to the cable tray
• Quick and easy mounting
• No need for junctions in the mounting process

Use and features:

• To cover 90º flat corners
• 4 SST screws are included for optional cover fixing
• Color: RAL 7035 Grey
• Insulating material
• Safety: electrical, mechanical and against fire
• Quick and easy mounting

Use and features:

• To cover cable tray ends and branchings
• SST screws are included for cover fixing
• Color: RAL 7035 Grey
• Insulating material
• Safety: electrical, mechanical and against fire
• Quick and easy mounting

Use and features:

• To cover the end cuts of the cable tray and of the cable tray cover
• IP3X electrical protection
• Color: RAL 7035 Grey
• Insulating material
• Easy installation

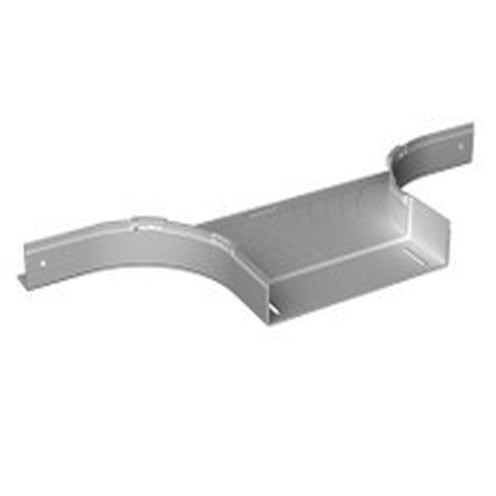

Use and features:

• For 90º branching
• Color: Grey
• Insulating material
• No loss of cross-section with regard to the cable tray
• 160mm bending radius
• Quick and easy mounting
• No need for junctions in the mounting process
• Good performance outdoors

Use and features:

• To cover semi T
• Color. Grey
• Insulating material
• Quick and easy mounting
• 4 SST screws are included for optional cover fixing
• Hides the cut marks of both cable tray and cover, adding quality finish to the installation

Use and features:

• To keep protection degree IK10 in cable trays with cover
• Color: RAL 7035 Grey
• Insulating material
• Additional fastening of the cover in front of possible impacts or weather effects (i.e., wind)
• Safe, easy and quick mounting

**Available for 60 mm and 100 mm lengths

Use and features:

• Variable-angle level changing.
• Color: RAL 7035 Grey
• Insulating material, halogen-free
• Safe, easy and quick mounting

**Available for 60 mm and 100 mm lengths

Use and features:

• To fix the Omega profile to the ceiling
• Color: Grey
• Safe, easy and quick mounting

Use and features:

• To makes 45° or 90º direction changes
• Each item includes right and left pieces
• Color: RAL 7035 Grey
• Insulating material
• Stability ensured. Easy mounting, just like junctions.

** Available for 60 mm and 100 mm lengths

Use and features:

• -45º level changing
• Two pieces are needed for each level changing
• Color: RAL 7035 Grey
• Insulating material
• Stability ensured. Easy mounting, just like junctions.

**Available for 60 mm and 100 mm lengths

Use and features:

• To fix cable trays horizontally to the wall or ceiling
• Fixing of the bracket to the wall: use metal screws Ø8. To achieve the maximum resistance the bracket must be properly mounted on the wall.
• Color: RAL 7035 Grey
• Insulating material
• Safety: electrical, mechanical and against fire
• Quick and easy mounting

**Available for all tray lengths

Use and features:

• To join several levels of horizontal brackets directly to the wall
• Use metal screws Ø8.
• Color: Grey
• Insulating material
• Safety: electrical, mechanical and against fire.

Use and features:

• To fix cable trays horizontally to the wall or ceiling
• Fixing of the bracket to the wall: use metal screws Ø8. To achieve the maximum resistance the bracket must be properly mounted on the wall.
• Color: RAL 7035 Grey
• Insulating material
• Safety: electrical, mechanical and against fire
• Quick and easy mounting

Use and features:

• To fix cable trays horizontally to the wall
• Use metal screws Ø10
• Fixing of 2 brackets: use screws Ref. 66809
• Color: Grey
• Safe, easy and quick mounting

For 60x75, 60x100, 60x150, 60x200 and 60x300mm trays

Use and features:

• To fix cable trays vertically to the wall and floor
• For fixing of the support to the wall: use metal screws Ø8
• Fixing of 2 brackets: use screws Ref. 66809
• Color: Grey
• Safe, easy and quick mounting

**Available for 75, 150, 200, 300, 400 and 600 mm trays
**Available in U23X and U41X/U43X

INSULATING VERTICAL SUPPORTS FOR U23X OR U41X/U43X

Use and features:

• To fix cable trays vertically to the wall
• Fixing of the cable tray to the vertical support: use metallic bolts
• For fixing of the support to the wall: use metal screws Ø8
• Color: Grey
• Insulating material
• Safety: electrical, mechanical and against fire
• Quick and easy mounting
• Just one piece for enhanced safety

**Available for all tray lengths

Use and features:

• To join several levels of horizontal brackets to the ceiling (with Omega connector) or to the wall
• Fixing to the connector: use 4 screws Ref. 66829.
• Fixing to the Omega profile: If a mounting pin is used, screws are not necessary to fix the horizontal bracket
• Color: Grey
• Safe, easy and quick mounting

U Connector: To fix the U profile to the ceiling. Use 2 metal screws Ø8. Grey. Safe, easy and quick mounting.

Omega Connector: To fix the Omega profile to the ceiling. Grey. Safe, easy and quick mounting.

Use and features:

• To join insulating brackets (in U24X or U41X) to the U profile or Omega profile
• When mounting pins are used, screws are not required to fix the horizontal bracket
• Safe, easy and quick mounting

66809 / 66809-44

• To join cable tray parts (M8 DIN 603 ISO 8677)
• Never use this screw to fix the cable tray to a vertical support
• In installations subject to vibration, metal screws with blocking nuts must be used
• Color: Grey
• Insulating material
• Safe, easy and quick mounting

66829

• To join cable tray parts (DIN 6921 M8 ISO EN 4017)
• For improved speed and comfort in mounting, it is recommended to use mounting pins (Ref. 66812 and Ref. 66822) whenever the mounting set allows
• In installations subject to vibration, metal screws with blocking nuts must be used
• Color: Grey
• Safe, easy and quick mounting

66839

• To join cable tray parts (M8 DIN 603 ISO 8677)
• In installations subject to vibration, metal screws with blocking nuts must be used.
• Color: Grey
• Safe, easy and quick mounting
